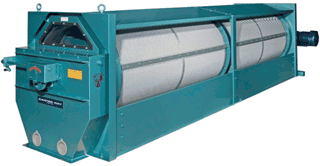

Phat Boy 36-4M Length Cleaner/Grader has been designed based on our Carter Day Uniflow. The cylinder is 36” in diameter and roughly 4 meters long made up of 12 Patented segmented cylinders. This machine has been designed to cover all the issues involved in large diameter length cleaning and grading.

Phat Boy Uniflow Drive Package

The shaft mounted direct drive offers reliability and ease of VFD control The direct drive shaft connects via a Ring Feder bolted connection. The spider design is non-tubular in construction using welded plate and angle to create the spider.

Phat Boy seal Package

The Seal Cone Inlet is a patent pending design that moves the seal point away from the length grading process. The seal cone is tapered so the seal is moved up 2-4 inches and back 4 inches away from the length grading process. We match the seal cone with a split UHMW seal mounting on the inside of the cylinder around the inlet.
